W-SeriesWI-VW-01
Cold Room Viewing Window
Cold room viewing window with heated insulated glass and telescopic frame for varying wall thickness. Glass build and dimensions are confirmed per project before quotation.
- Positioning
- Cold room viewing window, telescopic for wall thickness
- Core Advantage
- Cold room viewing window, telescopic for wall thickness
- Benchmark Ref
- Catalogue p.14
- Catalogue reference
- WI-VW-01 · p.14
Walk-in coolerWalk-in freezerCold storage inspectionProcess viewing

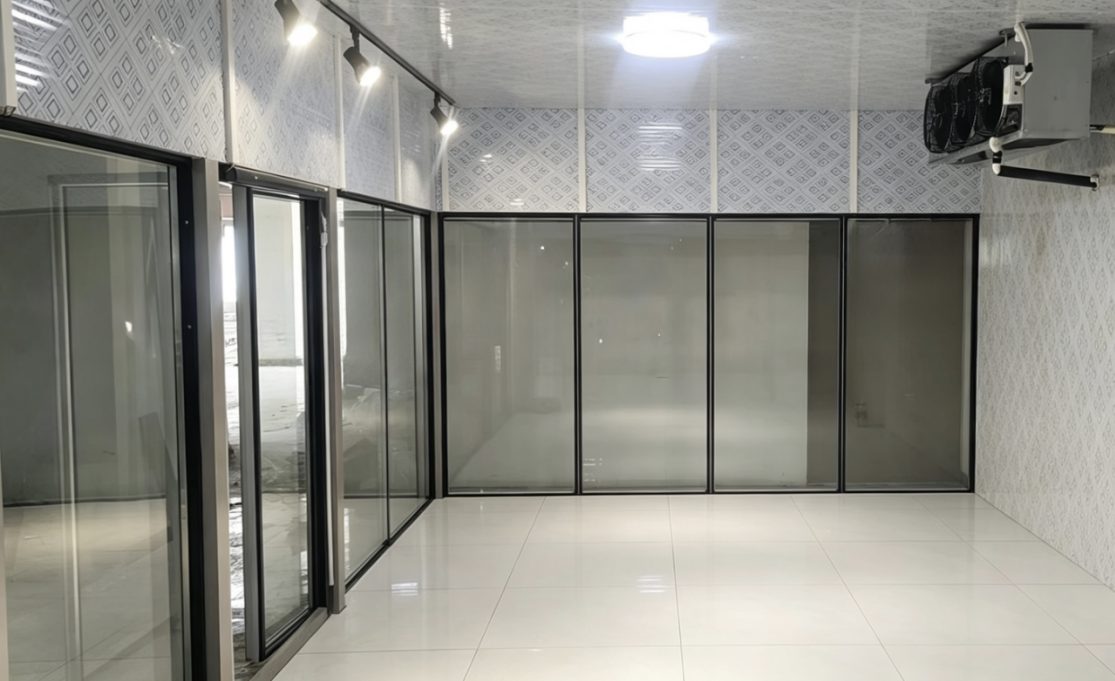

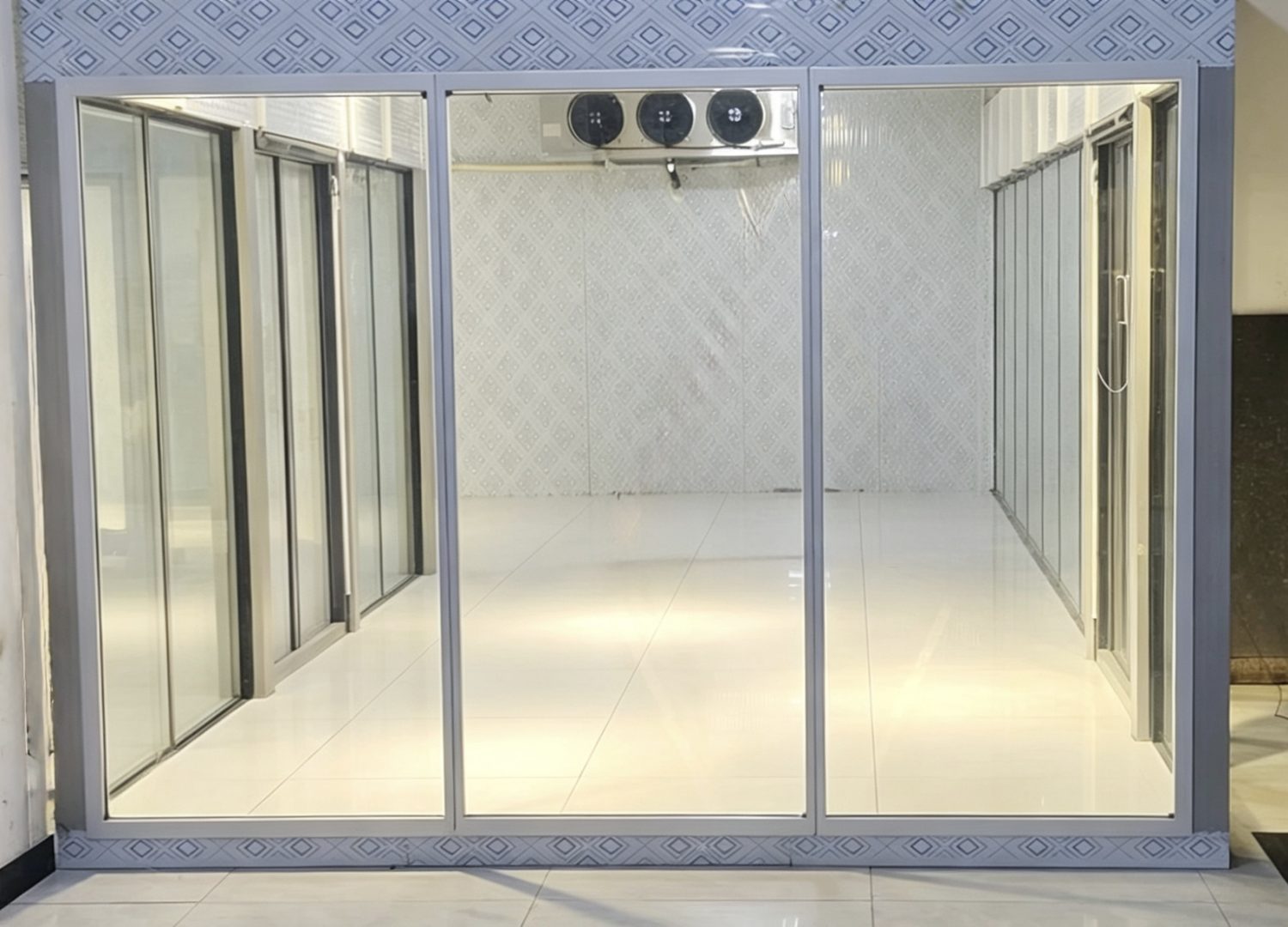

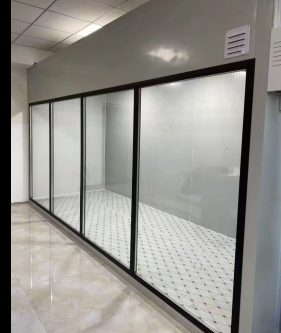

Catalogue reference photos. Final configuration is confirmed per project drawing and sample.
Standard Features
- Double tempered glass with argon (cooler)
- Triple tempered glass with argon (freezer)
- Heated glass technology
- Aluminum alloy frame
Optional Features
- Frame color: Black, Silver, White
- Telescopic design for wall thickness
- Custom sizes
Glazing Configuration
| Parameter | Value |
|---|---|
| Glass type | Insulated glass unit (IGU) |
| Tempered | Standard |
- Glass structure, thickness, coating and heating: Need factory confirmation
Key Specifications
| Parameter | Value |
|---|---|
| SKU | WI-VW-01 |
| Frame / material | Aluminum alloy |
| Glass build | Need factory confirmation |
| Size range | Need factory confirmation |
Configuration & Sub-Systems
| Item | Detail |
|---|---|
| Gasket | Magnetic(Field-replaceable) |
| Frame material options | Aluminum alloy |
| Hinge | Self-closing |
| Hold-open | No |
| Handle | To be confirmed |
Quality & Testing
The following QC points are checked during production. Full inspection records and test data are available upon request.
- Dimension tolerance check
- Seal / gasket fit check
- Function verification
- Visual inspection
Procurement Information
| Item | Detail |
|---|---|
| MOQ | Confirmed per project scope |
| Payment Terms | T/T, L/C |
| Loading Port | Qingdao, China |
| Country of Origin | China |
| Lead Time | Confirmed during RFQ review |
RFQ Checklist for This Model
Confirm the points below before drawing review or sample confirmation. This reduces rework on hinge layout, heating specification, and export packing.
- Door size or cabinet opening size, including left or right hinge orientation.
- Cooler or freezer temperature range, plus humidity exposure at the installation site.
- Glass structure requirement such as double-pane or triple-pane IGU.
- Heated glass, frame heating, voltage, and wattage confirmation where condensation control is required.
- Handle style, gasket profile, and any matching requirement to an existing cabinet or project drawing.
- Sample approval timing, quantity breakpoint, and requested shipment mark for export packing.
RFQ Information Needed
Application temperature
Door opening size W x H in mm
Quantity per size
Glass configuration
Heating and voltage
Frame color
Destination port
Drawings or photos if available
Packaging & Lead Time
Packaging
Export-grade packing to be confirmed per order
Lead Time
Confirmed during RFQ review
Compliance
Certificates and test reports available on request. Final specifications confirmed during RFQ review.
Downloads
Datasheets and drawings can be shared after confirming product model, application, and project requirements.
| Document | Type | Rev | Date |
|---|---|---|---|
| Request Datasheet | datasheet | — | 2026-06 |
Related Technical Resources
RFQ guide
Use the door size, opening size, voltage, quantity, and drawing checklist before requesting a quote.
OEM supply page
See how drawing confirmation, sample approval, and batch supply are handled for OEM refrigerator programs.
Cooler vs freezer door guide
Compare double-pane and triple-pane door selection by temperature range and condensation risk.
Product FAQ
What information is needed before quotation for Cold Room Viewing Window?
Please confirm door size or rough opening size, target temperature range, hinge side, handle preference, glass configuration, heater requirement, quantity, and whether a drawing or sample is available.
Can Cold Room Viewing Window be configured for cooler and freezer use?
Cold Room Viewing Window is usually quoted with insulated door configuration. Final cooler or freezer suitability should be confirmed against the operating temperature, humidity, and anti-condensation requirement. This model is generally quoted without heated glass unless the project conditions require it.
Can gasket, hinge, and handle details be matched to an existing cabinet?
Yes. For OEM and replacement projects, YTD can review drawings, photos, and samples to confirm hinge position, handle type, gasket profile, and opening size before sample approval or mass production.
How are these doors packed for export orders?
Export-grade packing to be confirmed per order. Export orders should also confirm carton marks, pallet quantity, and any crate requirements before shipment booking.
Request a Quote
For accurate pricing, share door opening size, application temperature range, heating requirement, and estimated quantity.
For faster review, include the cabinet drawing, opening size, target temperature, heater requirement, quantity, and requested lead time in your RFQ.
